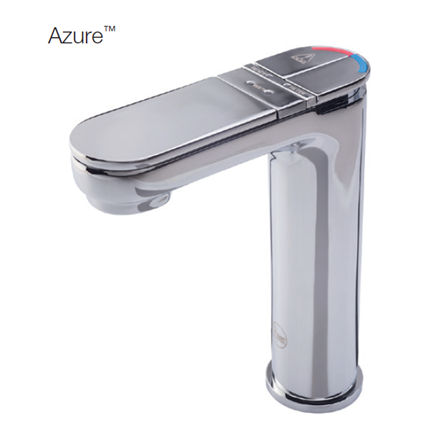

Rheem On-Tap Azure™ 5L Tap

Rheem On-Tap Azure™ 5L Tap


Rheem On-Tap Azure™ 5L Tap

The modular Rheem On-Tap Azure provides an energy efficient solution for both filtered boiling and chilled water (Chiller sold separately).

  • Filtered, Boiling & Chilled water
  • 5 litre option
  • Energy saving features including a timer to turn the unit off and a sleep mode that powers down the unit when it’s not in use
  • Safety features including a safety lock and automatic time out
  • Inbuilt 5 micron filter
  • Timer display shows the current time, day and date, as well remaining filter life
Capacity (L)
Capacity (L)
InstallationInitial Delivery

Model Number: Azure 5L 743105F

Storage CapacityL5.0
Initial DeliveryL5.0
First Hour BoilingCups 170ml170
First Hour ChilledGlasses 200mlN/A
Approx Weight Emptykg12
Minimum Water PressurekPa100
Maximum Water PressurekPa700
Electrical ConnectionSupplied with 10 amp 3 pin plug and flex
Plumbing ConnectionsCold Water1/2″ BSPM
“A” Width mm175
“B” Depth mm460
“C” Height mm405
AccessoriesPart Number
5 Micron Filter Kit317327Supplied
Sink-free kit317453Optional
Discreet Ventilation Kit317255N/A
