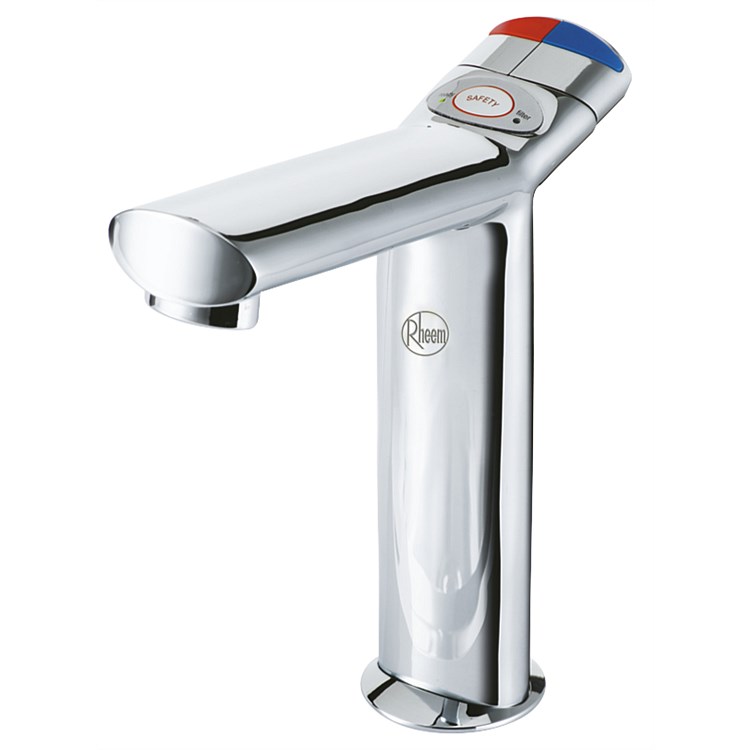

Rheem On-Tap Aqua™ 5L Tap

Rheem On-Tap Aqua™ 5L Tap



Rheem On-Tap Aqua™ 5L Tap

The modular Rheem On-Tap Aqua provides an energy efficient solution for both filtered boiling and chilled water (Chiller sold separately).

  • Filtered, Boiling & Chilled water
  • 5 litre option
  • Energy saving features including a timer to turn the unit off and a sleep mode that powers down the unit when it’s not in use
  • Safety features including a safety lock and automatic time out
  • Inbuilt 5 micron filter
  • Timer display shows the current time, day and date, as well remaining filter life
Capacity (L)
Capacity (L)
Installation Initial Delivery
5.0 N/A Indoor 5.0

Model Number: Aqua 5L 743005F

Storage Capacity L 5.0
Initial Delivery L 5.0
First Hour Boiling Cups 170ml 170
First Hour Chilled Glasses 200ml N/A
Approx Weight Empty kg 12
Minimum Water Pressure kPa 100
Maximum Water Pressure kPa 700
Input kW 2
Electrical Connection Supplied with 10 amp 3 pin plug and flex
Plumbing Connections Cold Water 1/2″ BSPM
“A” Width mm 175
“B” Depth mm 460
“C” Height mm 405
Accessories Part Number
5 Micron Filter Kit 317327 Supplied
Sink-free kit 317453 Optional
Discreet Ventilation Kit 317255 N/A


Technical Specification

Owners Guide
